QAGSiteMap

Who it is for

School districts, healthcare systems, universities, municipalities, retail chains and any owner running many buildings from one Niagara Supervisor. It also gives integrators a strong home page for multi-site jobs.

Live status at a glance

Each marker can be tied to a status point and colors itself automatically. Numeric points compare against warning and alarm thresholds, boolean points treat on or active as alarm, and enum points match the states you choose. Markers can pulse, bounce or blink on any active status, on warning and alarm, or on alarm only.

Rich popups

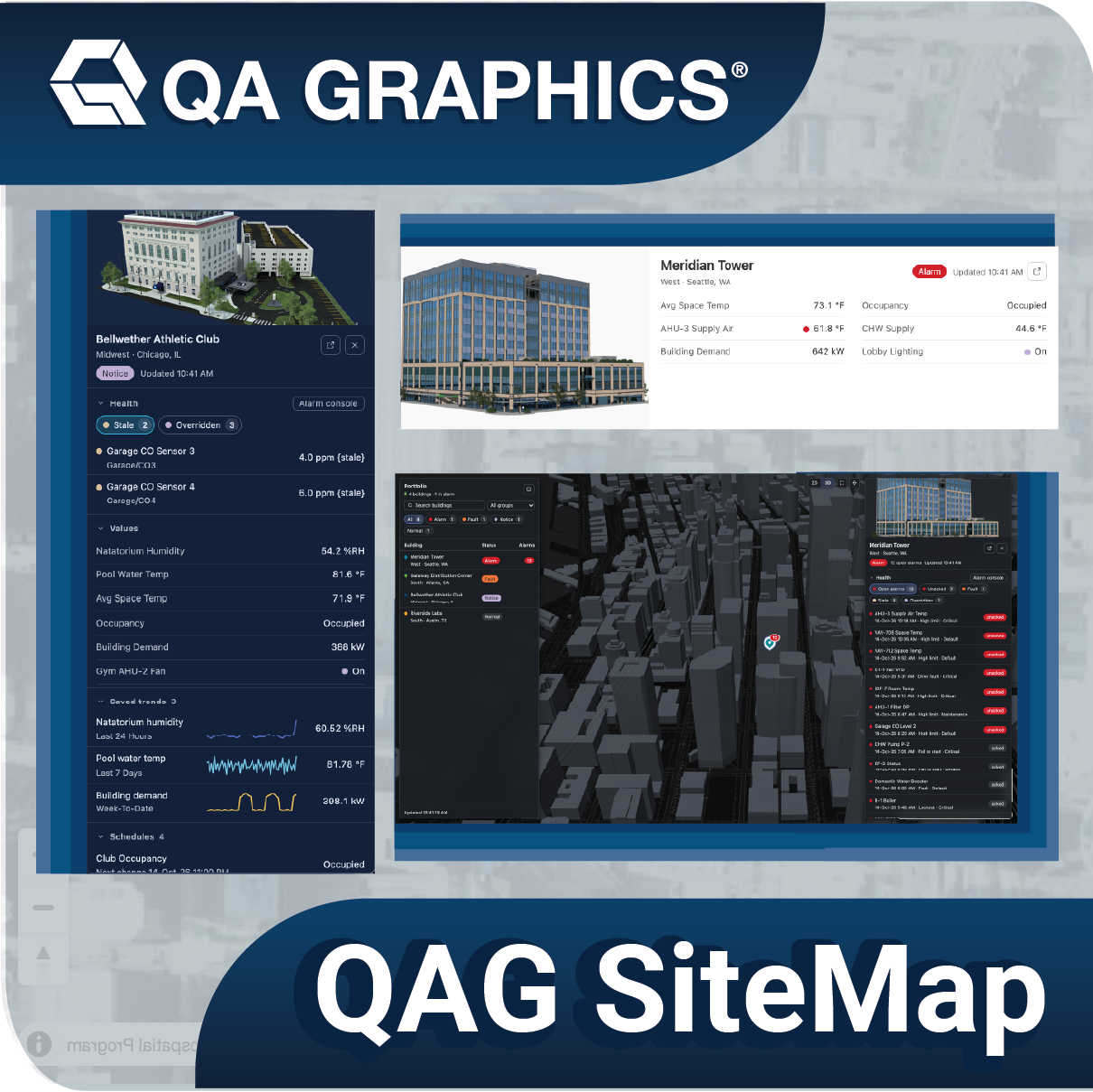

Click a marker to see the building photo, up to five live values with sparklines, the current alarm count and a link straight to that building's graphics through an HTTP link or Niagara ORD.

Map and marker options

•      4 map styles: standard, muted, dark and satellite

•      7 marker shapes: pin, circle, dot, ring, square, diamond and triangle

•      10 built-in icons: building, hospital, school, office, factory, warehouse, power, water, star or none

•      Full ARGB color control

•      Marker clustering with adjustable radius for dense campuses

•      Auto-fit to markers on load, or a fixed center, zoom and bounds

•      Searchable, filterable legend that expands into a summary table over the map

•      Optional weather banner showing temperature and humidity from station points

Getting started

1.     Add the QAGSiteMap license component under Services

2.     Add a QAMapsView and set the map center and zoom

3.     Add a QAMapMarker for each building with its latitude, longitude and point ORDs

4.     Place the MapView widget on a Px page and bind it to the map view
