v5 Symbol Library N4 Module
The v5 Symbol Library is our photo-realistic equipment library, compatible with more than 95% of common mechanical systems. It gives Niagara graphics a cleaner, more consistent look than the default kit symbols, and helps integrators deliver graphics that stand out from competing bids. Owners receive a Niagara 4 module at no extra cost that swaps v5 in for N4's existing graphics files.
PRICE: $4,750, one-time purchase. The license covers every project your company does.
CONTACT SELLER

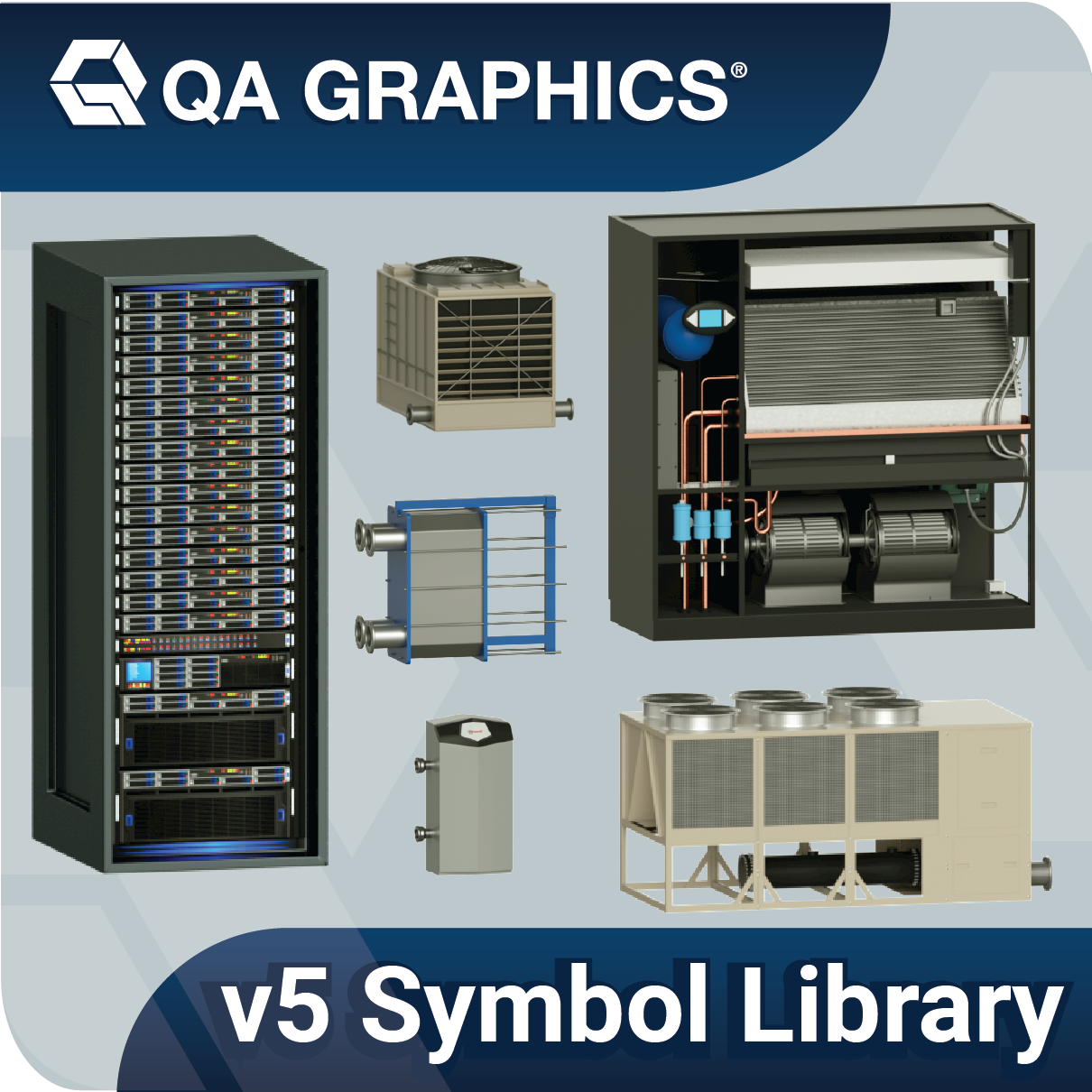

What's in the library
• 450+ static PNG graphics and 100+ animations in orthographic view
• Air handlers, rooftop units, chillers, boilers, cooling towers, pumps, fans and coils
• Multiple duct lengths and piping pieces for building out systems to match control drawings
• Symbols for energy-efficient equipment
• Terminal unit symbols for any configuration, including fan-powered VAV and cooling-only VAV
• Electrical cabinets, server racks and data center cooling units
How it works in Niagara
The N4 module packages the library so it substitutes for Niagara's existing graphics files. Integrators pick symbols from the palette, place them on Px pages and bind them to points the same way they do with the standard kit. Animations are ready to tie to fan, pump and damper status.
Why integrators choose it
A single library across every job gives a company a recognizable graphics standard and cuts the time technicians spend assembling equipment from basic shapes. Because the license belongs to the company, new hires and every future project use the same set at no added cost.
v5 or Vector?
v5 uses high-resolution PNG images and suits fixed workstation screens. The Vector Symbol Library is built from v5 as true SVG files and suits sites where operators use tablets and phones. Both include a free N4 module.
Recognition
The v5 Tridium module received a Niagara Innovator of the Year Honorable Mention at Niagara Summit 2018. The v5 library was also included in Consulting-Specifying Engineer's 2017 Product of the Year program.
Licensing Management: No Niagara license required. After payment, a download link for the library and N4 module is emailed. The license belongs to the purchasing company and covers all of its projects.
Requirements: Niagara 4 for the module. PNG files can also be delivered for other BAS platforms.
Platform: Supervisor, JACE
Resources: Full library catalog (PDF) and how-to videos at qagraphics.com/v5-symbol-library
